Output Surface Normal

The following screen shots show CATIA dialogs which can be used to enable the outputting of surface normal to an aptsource file for 5-axis CUTCOM.  This allows you to control the relation of the cutter to the part surface.

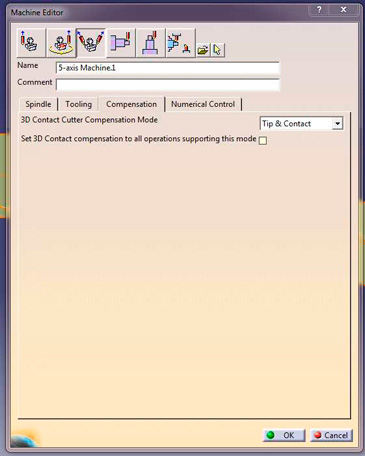

Machine editor dialog

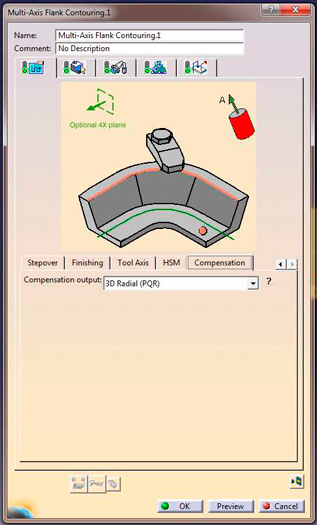

Multi-axis flank dialog

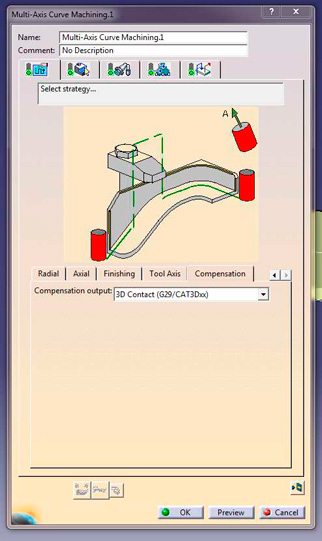

Multi-axis curve dialog
